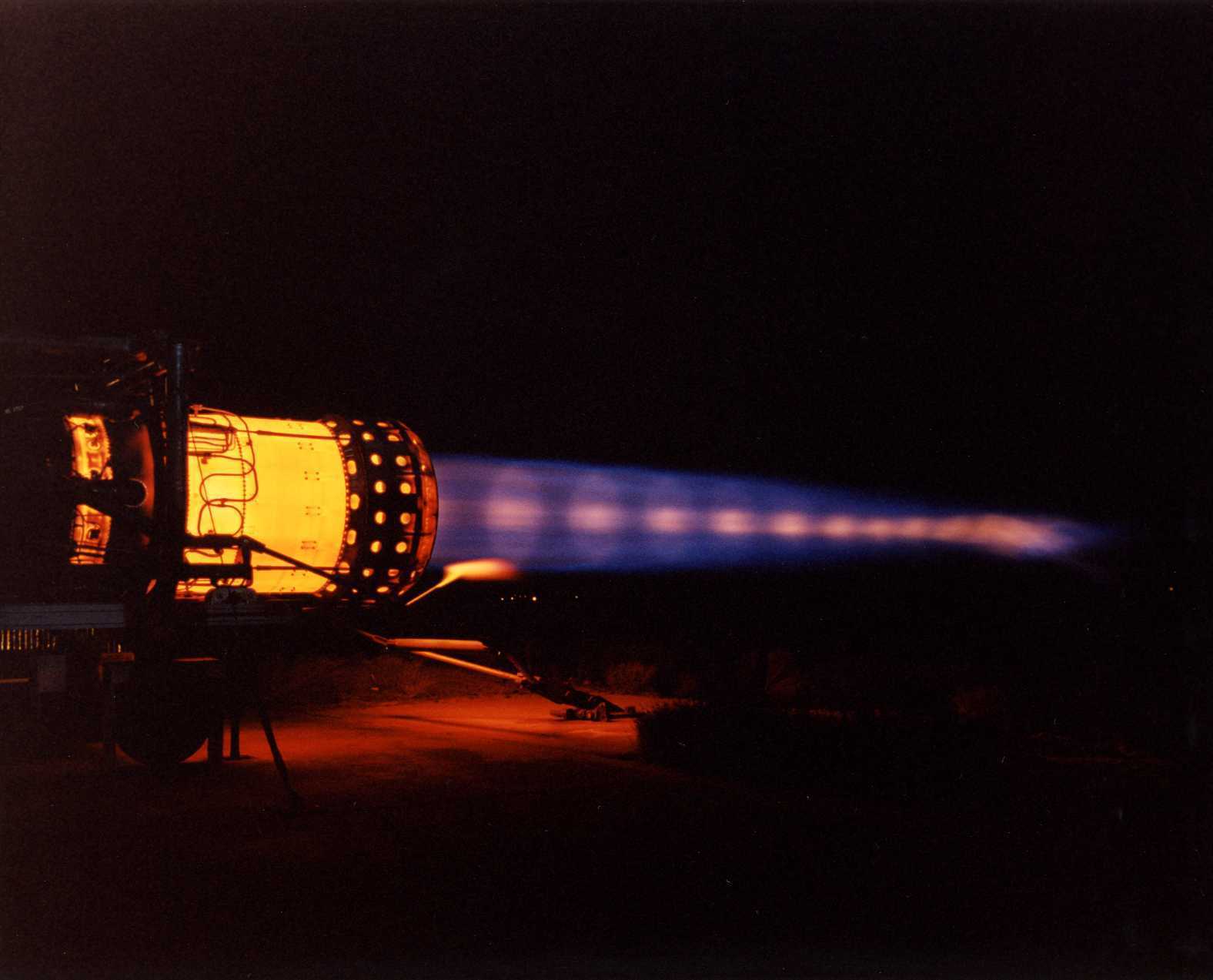

Imagine a rocket blasting off. Flames roar out, and strange diamond-shaped patterns glow in the exhaust. These are shock diamonds. They appear when hot gases exit a nozzle at supersonic speeds. Engineers and space fans love them. Shock diamonds show how rockets work under extreme conditions. This article explores their science, history, and role in modern spaceflight.
What Are Shock Diamonds and How Do They Form?
Shock diamonds start with pressure differences. A rocket engine burns fuel inside a chamber. This creates high-pressure gas. The nozzle releases it outside. Atmospheric pressure sits much lower than inside the engine.
Gas rushes out faster than sound. It expands quickly. However, it overexpands. The stream becomes too wide for the outside air. Shock waves form to balance things.
These waves reflect off each other. They create standing patterns. Bright spots appear where gas compresses and heats up. Dark areas show expansion. The result? Diamond shapes in the plume.
For example, SpaceX Falcon 9 launches show clear shock diamonds. The Merlin engines push exhaust at Mach 3 or higher. Viewers spot three to five diamonds on liftoff.
The Physics Behind Shock Diamonds
Rockets operate on basic fluid dynamics. Gas flows through a converging-diverging nozzle. This design accelerates it to supersonic speeds.
Underexpansion happens when nozzle pressure exceeds ambient levels. Overexpansion occurs in reverse. Most rockets use overexpanded nozzles at sea level. This boosts efficiency higher up.
Shock waves act like invisible walls. They bounce inside the exhaust plume. Each reflection builds a compression zone. Temperatures spike to thousands of degrees.
Additionally, Mach disks play a key role. A strong normal shock forms a flat disk. It marks the first diamond’s center. Subsequent reflections create the chain.
Engineers calculate this with Prandtl-Meyer expansion fans. They predict diamond spacing. The formula involves nozzle exit Mach number and pressure ratio.
A Brief History of Shock Diamond Discovery
Scientists noticed shock diamonds in the 1940s. Early jet engines showed similar patterns. However, rockets made them famous.
Wernher von Braun’s team studied V-2 exhausts. They saw repeating shocks but lacked tools to explain them.
By the 1950s, researchers used schlieren photography. This technique visualizes density changes. It captured shock diamonds clearly.
NASA’s Apollo program advanced understanding. Saturn V engines produced massive plumes. Shock diamonds stretched hundreds of feet.
Today, high-speed cameras record every launch. Blue Origin’s New Shepard shows textbook examples. The BE-3 engine creates perfect diamonds in vacuum transitions.
Why Shock Diamonds Matter in Rocket Design
Engineers optimize nozzles around shock behavior. Overexpansion causes flow separation. This reduces thrust and risks damage.
Shock diamonds signal efficient operation. Too few mean underexpansion. Too many indicate severe overexpansion.
SpaceX iterates designs rapidly. Falcon 9’s Merlin 1D uses sea-level nozzles. They overexpand at launch but perform well in vacuum.
Furthermore, shock diamonds affect engine longevity. Turbulent shocks vibrate components. Designers add film cooling to protect walls.
Altitude compensation remains a holy grail. Aerospike engines promise adaptive nozzles. They maintain ideal expansion across altitudes. Shock patterns adjust automatically.
Shock Diamonds in Different Rocket Engines
Not all engines produce the same diamonds. Liquid engines like RS-25 create long chains. Their high chamber pressures drive extreme speeds.
Solid rockets show shorter patterns. Propellant burns unevenly. This disrupts clean shock formation.
Hybrid engines blend traits. Virgin Galactic’s SpaceShipTwo uses nitrous oxide and rubber. Its exhaust forms fuzzy diamonds.
Moreover, methalox engines gain popularity. Starship’s Raptor produces bright blue plumes. Methane burns cleaner than kerosene.
Electric propulsion skips shock diamonds entirely. Ion thrusters expel slow ions. No supersonic flow means no patterns.
Real-World Examples of Shock Diamonds
SpaceX dominates viral launch footage. Starship tests from Boca Chica show evolving diamonds. Early flights had erratic patterns. Recent ones display symmetry.
NASA’s SLS uses four RS-25 engines. Core stage separation reveals massive shock structures. They span the booster’s width.
Blue Origin’s New Glenn aims for reusability. Its BE-4 engines will create methane-fueled diamonds. Tests already hint at performance.
Military missiles use shock diamonds too. Tomahawk cruise missiles hide them with stealth nozzles. However, high-altitude tests reveal patterns.
The Visual Appeal of Shock Diamonds
Photographers chase rocket launches for these patterns. Night launches glow orange and white. Diamonds pulse with engine throttle.
Social media explodes with slow-motion clips. Fans analyze diamond count to gauge health.
Additionally, shock diamonds inspire art. Sci-fi movies recreate them. Video games model exhaust physics.
Museums display engine cutaways. Visitors learn how nozzles shape flames.
Challenges Posed by Shock Diamonds
Intense heat stresses materials. Compression zones melt unprotected surfaces.
Vibrations cause fatigue. Apollo-era F-1 engines suffered cracks from shock-induced loads.
Noise pollution affects communities. Shock waves amplify sound beyond 140 decibels.
Engineers mitigate with Helmholtz resonators. These dampen acoustic waves.
Furthermore, startup transients disrupt patterns. Ignition shocks can destroy nozzles if mistimed.
Future of Shock Diamond Research
Computational fluid dynamics revolutionizes design. Simulations predict patterns before metal bends.
Additive manufacturing enables complex nozzles. Lattice structures cool high-heat zones.
Moreover, reusable rockets demand durability. Shock diamonds must not degrade components over dozens of flights.
Nuclear thermal propulsion promises new patterns. Hydrogen exhausts at higher temperatures create longer chains.
In-space refueling changes everything. Engines restart in vacuum. Shock diamonds vanish without atmosphere.
Shock Diamonds in Pop Culture
Movies love dramatic exhausts. “The Martian” showed accurate patterns. Consultants ensured scientific fidelity.
Documentaries feature slow-motion analysis. Narrators explain physics to lay audiences.
Merchandise sells diamond-patterned shirts. Space enthusiasts wear engine pride.
Educational programs use shock diamonds to teach fluid dynamics. Kids build model rockets and observe mini-patterns.
Environmental Impact of Shock Plumes
Exhaust contains water vapor and carbon dioxide. Shock diamonds concentrate emissions in bands.
Alumina particles from solids scar stratosphere. However, liquids burn cleaner.
Regulations push green propellants. Hydrogen peroxide leaves only water.
Furthermore, launch cadence increases scrutiny. Shock diamonds become visible markers of activity.
Teaching Shock Diamonds to Students
Classrooms use water rockets for demos. Compressed air creates weak shocks.
University labs employ wind tunnels. Dye visualizes flow patterns.
Online simulators let anyone tweak parameters. Adjust pressure ratios and watch diamonds form.
Textbooks simplify with cartoons. Step-by-step waves build intuition.
Common Misconceptions About Shock Diamonds
Many think diamonds indicate instability. In fact, they show normal operation.
Others believe count equals engine power. Spacing depends on design, not thrust.
Vacuum eliminates patterns entirely. No ambient pressure means no reflections.
Size does not scale with rocket. Nozzle exit diameter sets diamond width.
Advanced Analysis Techniques
Spectroscopy measures temperatures inside diamonds. Emission lines reveal chemistry.
Particle image velocimetry tracks flow speeds. Lasers illuminate seeded exhaust.
Machine learning predicts patterns. Algorithms optimize nozzle contours faster than humans.
Furthermore, in-flight sensors gather data. Telemetry refines models for future designs.
Shock Diamonds and Space Exploration Goals
Mars missions require reliable engines. Shock diamonds ensure thrust predictability.
Artemis program revives SLS. Its patterns guide ascent profiling.
Commercial space stations need gentle docking burns. Minimized shocks prevent plume impingement.
Asteroid mining demands efficiency. Optimized diamonds save propellant mass.
Global Efforts in Shock Diamond Studies
Europe’s Ariane 6 features Vulcain engines. Methane variants approach testing.
China’s Long March series evolves rapidly. New nozzles reduce overexpansion losses.
India’s ISRO focuses on cryogenics. CE-20 engines produce textbook patterns.
Russia maintains RD-180 legacy. Its kerosene plumes create classic diamonds.
Safety Implications of Shock Patterns
Ground crews monitor for asymmetry. Uneven diamonds signal nozzle damage.
Abort systems trigger on anomalies. Shock changes indicate failures.
Furthermore, range safety officers watch plumes. Visible patterns confirm trajectory.
Insurance underwriters assess risks. Consistent diamonds lower premiums.
Economic Aspects of Nozzle Design
Development costs billions. Shock diamond testing consumes propellant.
However, optimization saves millions in fuel. Each percent efficiency matters.
Reusable engines amortize expenses. Shock-tolerant designs enable hundreds of flights.
Supply chains deliver exotic alloys. Heat-resistant superalloys withstand compression zones.
Conclusion: The Enduring Allure of Shock Diamonds
Shock diamonds captivate engineers and dreamers alike. They transform raw physics into visual poetry. Every launch reminds us of human ingenuity pushing boundaries.
As rocketry advances, these patterns evolve. New fuels and designs create novel shapes. Yet the core science remains elegant.
Spaceflight democratizes access. Amateur rockets now produce mini-diamonds. Children witness the same wonders as professionals.
Ultimately, shock diamonds symbolize progress. They mark our journey from Earth to the stars. The flames that light our path also illuminate our future.
With continued innovation, we unlock deeper mysteries. Shock diamonds will guide generations of explorers. The sky is just the beginning.
